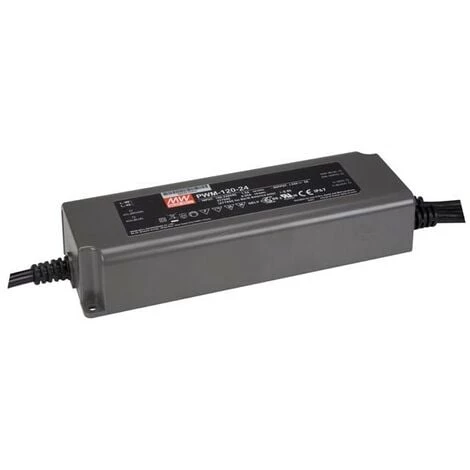

PEREL Alimentation Led Mli – 120 W – 24 V

Caractéristiques

• Type de produit: Alimentation LED
• Puissance: 120
• Utilisation: Universel
• Caractéristiques: Protection contre les courts-circuits

The PWM-120 series are 120 W waterproof constant voltage output LED power supplies. Unlike general DC output power supplies, this device transmits PWM style output, adapting to directly driving all kinds of LED strips that the colour temperature can be maintained and the brightness homogeneity can be assured. Adopting a universal input range between 90 and 305 VAC and incorporating the built-in PFC function, this series is also designed with a 2-in-1 dimming function (0-10 VDC, PWM signal) or resistance that simplifies the brightness adjustment for system designers so as to achieve light reduction and energy conservation. Providing a high efficiency up to 90.5% and a low no load power consumption below 0.5W, PWM-120 can satisfy the energy saving demand for the new generation of LED lighting. The class II design (without FG pin) and the double insulation weather-resistant cable (SJTW) on the input side make it convenient for users to flexibly install on various types of lighting systems. The enclosure design is a 94 V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation and allows PWM-120 to meet the anti-vibration demand up to 5G, it thus conforms to IP67 level, enabling PWM-120 to be used in a highly dusty and highly humid harsh environment. The entire series can operate under the temperature between -40 and +70 °C and complies with the relevant global lighting safety certifications.The PWM-120 series are 120 W waterproof constant voltage output LED power supplies. Unlike general DC output power supplies, this device transmits PWM style output, adapting to directly driving all kinds of LED strips that the colour temperature can be maintained and the brightness homogeneity can be assured. Adopting a universal input range between 90 and 305 VAC and incorporating the built-in PFC function, this series is also designed with a 2-in-1 dimming function (0-10 VDC, PWM signal) or resistance that simplifies the brightness adjustment for system designers so as to achieve light reduction and energy conservation. Providing a high efficiency up to 90.5% and a low no load power consumption below 0.5W, PWM-120 can satisfy the energy saving demand for the new generation of LED lighting. The class II design (without FG pin) and the double insulation weather-resistant cable (SJTW) on the input side make it convenient for users to flexibly install on various types of lighting systems. The enclosure design is a 94 V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation and allows PWM-120 to meet the anti-vibration demand up to 5G, it thus conforms to IP67 level, enabling PWM-120 to be used in a highly dusty and highly humid harsh environment. The entire series can operate under the temperature between -40 and +70 °C and complies with the relevant global lighting safety certifications.Caractéristiques :entrée CA universelle/plage complète (jusqu’à 305 VCA) – fonction PFC active intégrée – sortie style MLI à tension constante – plage de gradation: 0-100% – haute efficacité: jusqu’à 91 % – protections: court-circuit/surcharge/surtension/thermique – alimentation classe 2, pas de FG – fonction graduateur 2 in 1 intégrée (0-10 VCC ou signal MLI) option: K022AM (voir plus bas) – convient aux endroits secs / humides / mouillés – consommation à charge zéro < 0.5 W – 5 ans de garantieSpécifications :sortie: – tension CC: 24 V – courant nominal: 5 A – puissance nominale: 120 W – plage de gradation: 0-100 % – fréquence MLI (typ.): 300 Hz – tolérance de tension: ± 4.0 % – temps de démarrage, de montée: 500 ms, 80 ms 230 VCA / 115 VCA @ charge max. – temps de maintien: 16 ms / 230 VCA 16 ms / 115 VCA @ charge max. – entrée: – plage de tension: 90-305 VCA , 127-431 VCC – plage de fréquence: 47-63 Hz – facteur de puissance: PF > 0.97 / 115 VCA, PF > 0.96 / 230 VCA, PF 0.94 / 277 VCA @ charge max. (se référer à la courbe ‘facteur de puissance’) – distorsion harmonique totale: THD < 20% à sortie >/= 60 % @ 115 VCA / 230 VCA entrée et sortie >/= 75 % @ 277 VCA entrée – efficacité: 90% – courant CA: 1.3 A / 115 VCA 0.65 A / 230 VCA 0.55 A / 277 VCA – appel de courant: démarrage à froid 60 A (twidth = 550 µs mesuré @ 50 % Ipeak) @ 230 VCA – courant de fuite: < 0.25 mA / 277 VCA – protection: – surcharge: – – 108-120 % puissance de sortie nominale – – type de protection: mode hiccup, rétablissement automatique une fois que la panne est résolue – surtension: – – 28-34 V – – type de protection: fermer o/p tension, re- power pour récupérer – surchauffe: fermer o/p tension, re-power pour récupérer – environnement: – température de service: de -40 à +70 °C – humidité de service: 20-95 % RH sans condensation – température de stockage, humidité: -40 to +80°C, 10-95% RH – coefficient de température: ± 0.03 % / °C (0-50 °C) – vibration: 10-500 Hz, 5 G 12 min / 1 cycle, période de 72 min le long des axes X, Y, Z – sécurité & EMC: – normes de sécurité: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 approuvé IP67, se référer à EN60335-1 – tension d’isolation: entrée vers sortie : 3.75 kVCA – résistance d’isolement: entrée vers sortie : > 100 Mohm / 500 VCC / 25 °C / 70 % RH – émission EMC: conforme EN55015, EN61000-3-2 Class C (>= 60 % charge), EN61000-3-3 – immunité EMC: conforme EN61000-4-2,3,4,5,6,8,11, EN61547 industrie légère (crête L-N: 2 kV), critères A – autres: – MTBF: MIL-HDBK-217F (25 °C) – dimensions: 191 x 63 x 37.5 mmThe PWM-120 series are 120 W waterproof constant voltage output LED power supplies. Unlike general DC output power supplies, this device transmits PWM style output, adapting to directly driving all kinds of LED strips that the colour temperature can be maintained and the brightness homogeneity can be assured. Adopting a universal input range between 90 and 305 VAC and incorporating the built-in PFC function, this series is also designed with a 2-in-1 dimming function (0-10 VDC, PWM signal) or resistance that simplifies the brightness adjustment for system designers so as to achieve light reduction and energy conservation. Providing a high efficiency up to 90.5% and a low no load power consumption below 0.5W, PWM-120 can satisfy the energy saving demand for the new generation of LED lighting. The class II design (without FG pin) and the double insulation weather-resistant cable (SJTW) on the input side make it convenient for users to flexibly install on various types of lighting systems. The enclosure design is a 94 V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation and allows PWM-120 to meet the anti-vibration demand up to 5G, it thus conforms to IP67 level, enabling PWM-120 to be used in a highly dusty and highly humid harsh environment. The entire series can operate under the temperature between -40 and +70 °C and complies with the relevant global lighting safety certifications.Caractéristiques :entrée CA universelle/plage complète (jusqu’à 305 VCA) – fonction PFC active intégrée – sortie style MLI à tension constante – plage de gradation: 0-100% – haute efficacité: jusqu’à 91 % – protections: court-circuit/surcharge/surtension/thermique – alimentation classe 2, pas de FG – fonction graduateur 2 in 1 intégrée (0-10 VCC ou signal MLI) option: K022AM (voir plus bas) – convient aux endroits secs / humides / mouillés – consommation à charge zéro < 0.5 W – 5 ans de garantieSpécifications :sortie: – tension CC: 24 V – courant nominal: 5 A – puissance nominale: 120 W – plage de gradation: 0-100 % – fréquence MLI (typ.): 300 Hz – tolérance de tension: ± 4.0 % – temps de démarrage, de montée: 500 ms, 80 ms 230 VCA / 115 VCA @ charge max. – temps de maintien: 16 ms / 230 VCA 16 ms / 115 VCA @ charge max. – entrée: – plage de tension: 90-305 VCA , 127-431 VCC – plage de fréquence: 47-63 Hz – facteur de puissance: PF > 0.97 / 115 VCA, PF > 0.96 / 230 VCA, PF 0.94 / 277 VCA @ charge max. (se référer à la courbe ‘facteur de puissance’) – distorsion harmonique totale: THD < 20% à sortie >/= 60 % @ 115 VCA / 230 VCA entrée et sortie >/= 75 % @ 277 VCA entrée – efficacité: 90% – courant CA: 1.3 A / 115 VCA 0.65 A / 230 VCA 0.55 A / 277 VCA – appel de courant: démarrage à froid 60 A (twidth = 550 µs mesuré @ 50 % Ipeak) @ 230 VCA – courant de fuite: < 0.25 mA / 277 VCA – protection: – surcharge: – – 108-120 % puissance de sortie nominale – – type de protection: mode hiccup, rétablissement automatique une fois que la panne est résolue – surtension: – – 28-34 V – – type de protection: fermer o/p tension, re- power pour récupérer – surchauffe: fermer o/p tension, re-power pour récupérer – environnement: – température de service: de -40 à +70 °C – humidité de service: 20-95 % RH sans condensation – température de stockage, humidité: -40 to +80°C, 10-95% RH – coefficient de température: ± 0.03 % / °C (0-50 °C) – vibration: 10-500 Hz, 5 G 12 min / 1 cycle, période de 72 min le long des axes X, Y, Z – sécurité & EMC: – normes de sécurité: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 approuvé IP67, se référer à EN60335-1 – tension d’isolation: entrée vers sortie : 3.75 kVCA – résistance d’isolement: entrée vers sortie : > 100 Mohm / 500 VCC / 25 °C / 70 % RH – émission EMC: conforme EN55015, EN61000-3-2 Class C (>= 60 % charge), EN61000-3-3 – immunité EMC: conforme EN61000-4-2,3,4,5,6,8,11, EN61547 industrie légère (crête L-N: 2 kV), critères A – autres: – MTBF: MIL-HDBK-217F (25 °C) – dimensions: 191 x 63 x 37.5 mmThe PWM-120 series are 120 W waterproof constant voltage output LED power supplies. Unlike general DC output power supplies, this device transmits PWM style output, adapting to directly driving all kinds of LED strips that the colour temperature can be maintained and the brightness homogeneity can be assured. Adopting a universal input range between 90 and 305 VAC and incorporating the built-in PFC function, this series is also designed with a 2-in-1 dimming function (0-10 VDC, PWM signal) or resistance that simplifies the brightness adjustment for system designers so as to achieve light reduction and energy conservation. Providing a high efficiency up to 90.5% and a low no load power consumption below 0.5W, PWM-120 can satisfy the energy saving demand for the new generation of LED lighting. The class II design (without FG pin) and the double insulation weather-resistant cable (SJTW) on the input side make it convenient for users to flexibly install on various types of lighting systems. The enclosure design is a 94 V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation and allows PWM-120 to meet the anti-vibration demand up to 5G, it thus conforms to IP67 level, enabling PWM-120 to be used in a highly dusty and highly humid harsh environment. The entire series can operate under the temperature between -40 and +70 °C and complies with the relevant global lighting safety certifications.Caractéristiques :entrée CA universelle/plage complète (jusqu’à 305 VCA) – fonction PFC active intégrée – sortie style MLI à tension constante – plage de gradation: 0-100% – haute efficacité: jusqu’à 91 % – protections: court-circuit/surcharge/surtension/thermique – alimentation classe 2, pas de FG – fonction graduateur 2 in 1 intégrée (0-10 VCC ou signal MLI) option: K022AM (voir plus bas) – convient aux endroits secs / humides / mouillés – consommation à charge zéro < 0.5 W – 5 ans de garantieSpécifications :sortie: – tension CC: 24 V – courant nominal: 5 A – puissance nominale: 120 W – plage de gradation: 0-100 % – fréquence MLI (typ.): 300 Hz – tolérance de tension: ± 4.0 % – temps de démarrage, de montée: 500 ms, 80 ms 230 VCA / 115 VCA @ charge max. – temps de maintien: 16 ms / 230 VCA 16 ms / 115 VCA @ charge max. – entrée: – plage de tension: 90-305 VCA , 127-431 VCC – plage de fréquence: 47-63 Hz – facteur de puissance: PF > 0.97 / 115 VCA, PF > 0.96 / 230 VCA, PF 0.94 / 277 VCA @ charge max. (se référer à la courbe ‘facteur de puissance’) – distorsion harmonique totale: THD < 20% à sortie >/= 60 % @ 115 VCA / 230 VCA entrée et sortie >/= 75 % @ 277 VCA entrée – efficacité: 90% – courant CA: 1.3 A / 115 VCA 0.65 A / 230 VCA 0.55 A / 277 VCA – appel de courant: démarrage à froid 60 A (twidth = 550 µs mesuré @ 50 % Ipeak) @ 230 VCA – courant de fuite: < 0.25 mA / 277 VCA – protection: – surcharge: – – 108-120 % puissance de sortie nominale – – type de protection: mode hiccup, rétablissement automatique une fois que la panne est résolue – surtension: – – 28-34 V – – type de protection: fermer o/p tension, re- power pour récupérer – surchauffe: fermer o/p tension, re-power pour récupérer – environnement: – température de service: de -40 à +70 °C – humidité de service: 20-95 % RH sans condensation – température de stockage, humidité: -40 to +80°C, 10-95% RH – coefficient de température: ± 0.03 % / °C (0-50 °C) – vibration: 10-500 Hz, 5 G 12 min / 1 cycle, période de 72 min le long des axes X, Y, Z – sécurité & EMC: – normes de sécurité: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 approuvé IP67, se référer à EN60335-1 – tension d’isolation: entrée vers sortie : 3.75 kVCA – résistance d’isolement: entrée vers sortie : > 100 Mohm / 500 VCC / 25 °C / 70 % RH – émission EMC: conforme EN55015, EN61000-3-2 Class C (>= 60 % charge), EN61000-3-3 – immunité EMC: conforme EN61000-4-2,3,4,5,6,8,11, EN61547 industrie légère (crête L-N: 2 kV), critères A – autres: – MTBF: MIL-HDBK-217F (25 °C) – dimensions: 191 x 63 x 37.5 mm
